Brand Name : | XXR |
Model Number : | OFSS-40M |
Certification : | SGS |
Price : | Negotiable |
Payment Terms : | T/T, L/C |
Supply Ability : | 200K pcs/day |
Delivery Time : | 5-7 days |

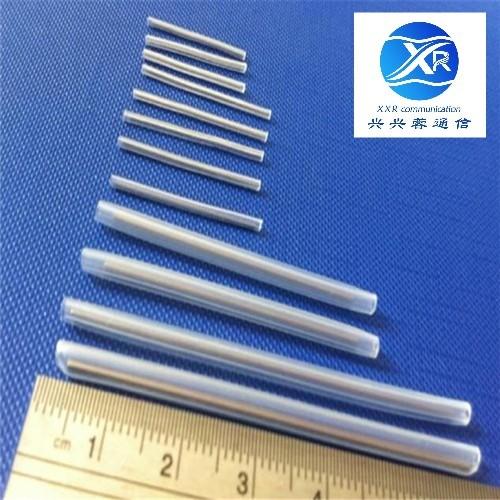

Definition: Optical fiber heat-shrinkable tube, commonly known as optical
fiber connector, scientific name: optical fiber connection
heat-shrinkable protection tube, or optical fiber fusion protection
heat-shrinkable tube, is an optical fiber connection protection
element. the scope of application of small and micro fiber heat shrinkable
tube: It is mainly used in optical devices, optical instruments, special
optical equipment and other fields that need optical fiber
transmission data. It can reliably solve the problem of connection
through hot melt. Composition and characteristics of optical fiber heat shrinkable
tube: Composition : (1) heat shrinkable tube (2) hot melt tube (3) stainless steel
needle Features : (1) low shrinkage temperature, hot melt speed is very fast (2) the steel needle makes the high mechanical strength after fusion greatly improved, to provide strength and protection for the fiber joint, sealing structure so that the connection has good temperature resistance and humidity performance (3) the attenuation is almost zero, the signal is more stable, the transmission speed is faster (4) simple operation, reduce the risk of damage to the optical fiber during installation Application: optical communication field. Suitable for: Optical instrument and equipement |
Specifications:
Part No. | Spec. (mm) | Steel rod dia.(mm) | Outer tube L.(mm) | OD after shrinking (mm) | Inner tube L.(mm) | ID (mm) |
OFSS-40M | 0.5 * 40 | 0.5 | 40 | 1.4 | 40 | ≥1.2 |
OFSS-45M | 0.5 * 45 | 0.5 | 45 | 1.4 | 45 | ≥1.2 |
![]() |
