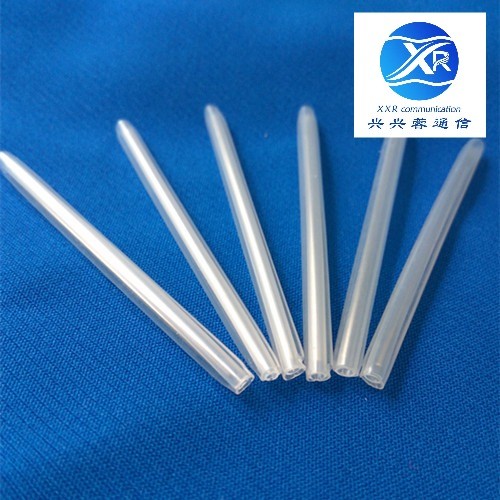

    45mm Single Micro Fiber Splice Protection Sleeves Transparent Tube

    Ask Lasest Price
    Brand Name : XXR
    Model Number : OFSS-45M
    Certification : SGS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 200K pcs/day
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    45mm Single Micro Fiber Splice Protection Sleeves Transparent Tube

    OPTICAL FIBER SPLICING SLEEVE

    Definition: Optical fiber heat-shrinkable tube, commonly known as optical fiber connector, scientific name: optical fiber connection heat-shrinkable protection tube, or optical fiber fusion protection heat-shrinkable tube, is an optical fiber connection protection element.
    the scope of application of small and micro fiber heat shrinkable tube:
    It is mainly used in optical devices, optical instruments, special optical equipment and other fields that need optical fiber transmission data. It can reliably solve the problem of connection through hot melt.
    Composition and characteristics of optical fiber heat shrinkable tube:
    Composition :
    (1) heat shrinkable tube (2) hot melt tube (3) stainless steel needle
    Features :

    (1) low shrinkage temperature, hot melt speed is very fast


    (2) the steel needle makes the high mechanical strength after fusion greatly improved, to provide strength and protection for the fiber joint, sealing structure so that the connection has good temperature resistance and humidity performance

    (3) the attenuation is almost zero, the signal is more stable, the transmission speed is faster

    (4) simple operation, reduce the risk of damage to the optical fiber during installation

    Application: optical communication field.
    Suitable for: optical communication passive products such as FTTH optical fiber distribution box, FTTx fiber optic splice closures, ODF/patch panel, termination box, splice tray, cross-connecting cabinet and so on.

    Part No.Spec. (mm)

    Steel rod

    dia.(mm)

    Outer tube

    L.(mm)

    OD after shrinking

    (mm)

    Inner tube

    L.(mm)

    ID

    (mm)

    OFSS-40M0.5 * 400.5401.440≥1.2
    OFSS-45M0.5 * 450.5451.445≥1.2

    45mm Single Micro Fiber Splice Protection Sleeves Transparent Tube


    45mm Single Micro Fiber Splice Protection Sleeves Transparent Tube45mm Single Micro Fiber Splice Protection Sleeves Transparent Tube
