    1.77 Inch Fiber Splice Protector 12 Cores Fiber Optic Closure

    Ask Lasest Price
    Brand Name : XXR
    Model Number : OFSS-45T
    Certification : SGS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 200K pcs/day
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

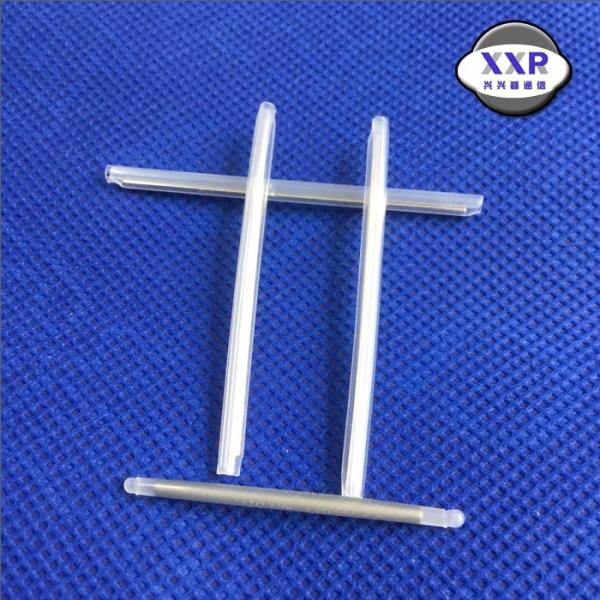

    1.77 Inch Fiber Splice Protector 12 Cores Fiber Optic Closure

    45mm/1.77 inch Optical Fiber Splicing Sleeve With 3.54mm Outer Diameter for 12 Cores Fiber Optic Closure


    Product description
    1. Length:45mm/1.77inch;
    2. Outer Tube Diameter:3.54mm/0.14inch;
    3. Inner Tube Diameter:2.21mm/0.09inch;
    4. Steel Rod Steel Rod :1.17mm/0.05inch
    5. Shrinking temperature range: 60-120 Celsius degree;
    6. working temperature range: -55 - 105 Celsius degree;
    7. material: Polyolefin, 304 stainless steel;
    8. Max installation time: 60 seconds
    9. Standard color: Clear
    10. Packing: 1600 pcs


    Factory with Strong Strength

    The company has three advanced production lines, including steel rod production line,

    plastic tube production line and automatic-assembly production line.the capability of

    producing sleeves exceeds 200,000 pieces a day.


    Production capability: 180,000 pcs per day


    Specifications:
    Part No.Spec. (mm)

    Steel rod

    dia.(mm)

    Outer tube

    L.(mm)

    OD after shrinking

    (mm)

    Inner tube

    L.(mm)

    ID

    (mm)

    OFSS-40T1.5 * 401.5403.040≥1.2
    OFSS-45T1.5 * 451.5453.045≥1.2
    OFSS-60T1.5 * 601.5603.060≥1.2
    OFSS-40T1.2 * 401.2402.740≥1.2
    OFSS-45T1.2 * 451.2452.745≥1.2
    OFSS-60T1.2 * 601.2602.760≥1.2
    OFSS-40T1.0 * 401.0402.540≥1.2
    OFSS-45T1.0 * 451.0452.545≥1.2
    OFSS-60T1.0 * 601.0602.560≥1.2

    Payment: T/T, Western Union, others

    Delivery: By Air via DHL, FedEx,UPS, TNT, EMS etc or By Sea.

    Lead time: 5-7 days



    Application:
