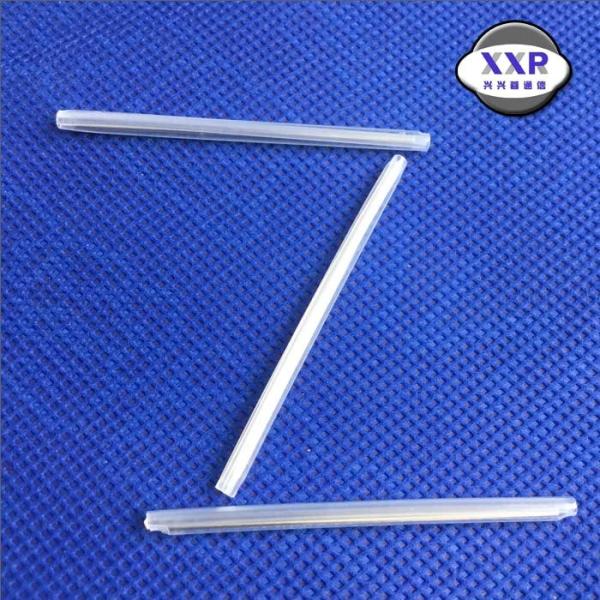

    Hot Melt Fiber Splice Protector 144 Cores Optical Fiber Closure

    Ask Lasest Price
    Brand Name : XXR
    Model Number : OFSS-60T
    Certification : SGS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 200K pcs/day
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    Hot Melt Fiber Splice Protector 144 Cores Optical Fiber Closure

    Hot-melt Fision Tubing Fiber Protection Sleeves for 144 Cores Fiber Optic Closure


    Shrinking OD=2.7mm

    Length=60MM

    Steel rod diam.=1.2mm


    Fiber Optic Splice Sleeves

    Consist of a rod of reinforcing the splice, heat fusion tubing and cross-linked polyolefin,

    to provide mechanical strength at the fusion joint area and keep optical transmission properties.

    Easily use and avoid any damages to the optical fiber during installation, Airproof configuration

    keeping the splice point's good resistance of humidity and temperature.

    Operating temperature
    -45°C to +100°C; Minimum fully recovery temperature:120°C

    Specifications:
    Part No.Spec. (mm)

    Steel rod

    dia.(mm)

    Outer tube

    L.(mm)

    OD after shrinking

    (mm)

    Inner tube

    L.(mm)

    ID

    (mm)

    OFSS-40T1.5 * 401.5403.040≥1.2
    OFSS-45T1.5 * 451.5453.045≥1.2
    OFSS-60T1.5 * 601.5603.060≥1.2
    OFSS-40T1.2 * 401.2402.740≥1.2
    OFSS-45T1.2 * 451.2452.745≥1.2
    OFSS-60T1.2 * 601.2602.760≥1.2
    OFSS-40T1.0 * 401.0402.540≥1.2
    OFSS-45T1.0 * 451.0452.545≥1.2
    OFSS-60T1.0 * 601.0602.560≥1.2

    Production capability: 180,000 pcs per day

    Payment: T/T, Western Union, others

    Delivery: By Air via DHL, FedEx,UPS, TNT, EMS etc or By Sea.

    Lead time: 5-7 days



    Application:
