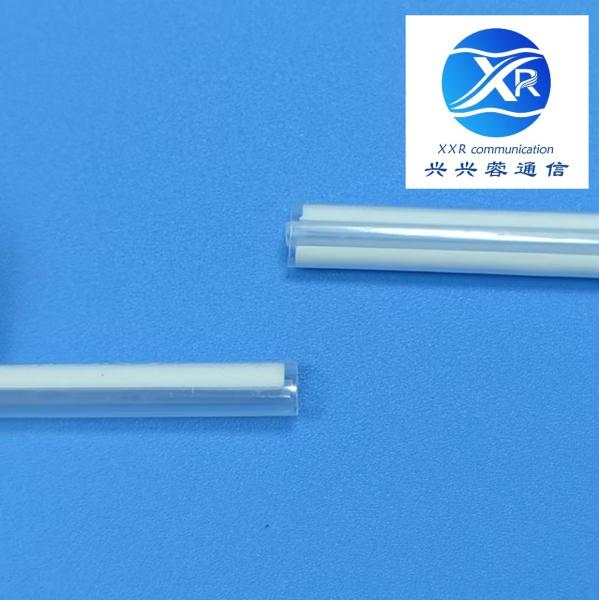

12 Cores 40mm Shrunk OD5.6*5.4mm Double Ceramic Rods Fiber Optic
Sleeve
Fiber sleeve is a splicing component for enhancing protection or supporting
positioning of optical fiber splicing parts.
Ribbon Fiber Fiber Optic Protection Sleeve is 40mm,50mm and 60mm heat shrinkable sleeve for single fiber, and
6 cores,12 cores fiber optic protection sleeve for ribbon fiber
cable.
The sleeve can be divided into two types (single sleeve and ribbon
sleeve) according to the function. The single type is used for the
single-fiber, and the mass type is used for the ribbon fiber. It is
different in the reinforcement between two types. The single one
realizes the reinforcement by the stainless steel needles, the
later one via the ceramic reinforcement member to realize the
function.Ribbon sleeve means there are several cores for the fiber.
So the mass sleeve includes 4cores, 6cores, 8cores, 12 cores (for
types).
Application: optical communication field.
Features: parts splicing, enhanced protection, supporting positioning,
reliable.
Parts: outer tube, inner tube and ceramic rod. The outer tube is heat
shrink tube and the inner tube is fusion tube.The rod usully adopts
ceramics and quartz. Generally, it depends on use condition.
Used for: optical communication passive products such as FTTH optical fiber
distribution box, FTTx fiber optic splice closures, ODF/patch
panel, termination box, splice tray, cross-connecting cabinet and
so on.
Specification
| Part No. | L. (mm) | Steel rod dia.(mm) | Outer tube L.(mm) | OD after shrinking (mm) | Inner tube I.D.(mm) |
| 4F-OFSS-40 | 40±0.05 | Single-3*1.5 | 40±0.05 | 3.6*3.6 | 3.2*1.6 |
| 6F-OFSS-40 | 40±0.05 | Single-3*1.5 | 40±0.05 | 3.7*3.7 | 3.1*1.7 |
| 8F-OFSS-40 | 40±0.05 | Single-4*2 | 40±0.05 | 4.7*4.1 | 3.2*1.5 |
| 12F-OFSS-40 | 40±0.05 | Single-4*2 | 40±0.05 | 4.8*4.35 | 3.9*1.8 |
| 6F-OFSS-40 | 40±0.05 | Double-3*1.5 | 40±0.05 | 4.7*4.7 | 2.7*1.6 |
| 12F-OFSS-40 | 40±0.05 | Double-4*2 | 40±0.05 | 5.6*5.4 | 4.3*2.0 |
