8 CORES Single Ceramic Rod 8 Cores Ribbon Fiber Optic Sleeve With Shrunk
OD4.7*4.1mm
Optical fiber splicing sleeve is applied to the optical fiber closure to fix and protect the
optical fiber when splicing.
The fiber sleeve can be divided into two types(single and mass) according to the function. The single
type is used for the single-fiber, and the mass type is used for
the ribbon fiber. It is different in the reinforcement between two
types. The single one realizes the reinforcement by the stainless
steel needles, the later one via the ceramic reinforcement member
to realize the function. Mass means there are several cores for the
fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for
types).
Application: optical communication field.
Features: parts splicing, enhanced protection, supporting positioning,
reliable.

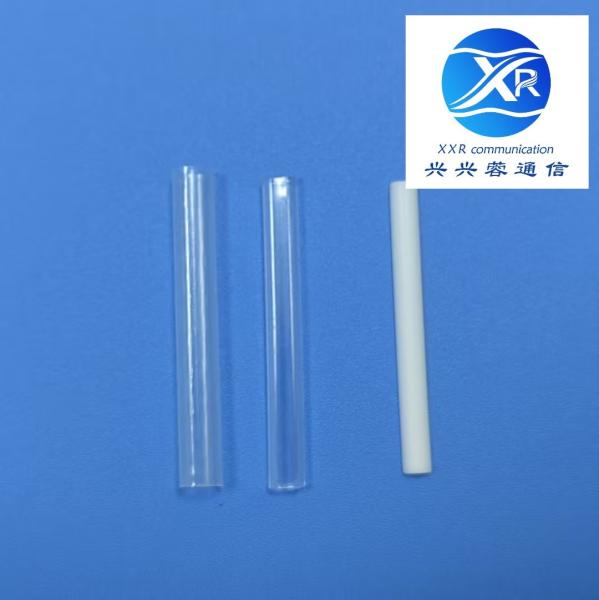

Parts: outer tube, inner tube and ceramic rod. The outer tube is
heat shrink tube and the inner tube is fusion tube.The rod usully
adopts ceramics and quartz. Generally, it depends on use condition.
Used for: optical communication passive products such as FTTH optical fiber
distribution box, FTTx fiber optic splice closures, ODF/patch
panel, termination box, splice tray, cross-connecting cabinet and
so on.
Specification
| Part No. | L. (mm) | Steel rod dia.(mm) | Outer tube L.(mm) | OD after shrinking (mm) | Inner tube I.D.(mm) |
| 4F-OFSS-40 | 40±0.05 | Single-3*1.5 | 40±0.05 | 3.6*3.6 | 3.2*1.6 |
| 6F-OFSS-40 | 40±0.05 | Single-3*1.5 | 40±0.05 | 3.7*3.7 | 3.1*1.7 |
| 8F-OFSS-40 | 40±0.05 | Single-4*2 | 40±0.05 | 4.7*4.1 | 3.2*1.5 |
| 12F-OFSS-40 | 40±0.05 | Single-4*2 | 40±0.05 | 4.8*4.35 | 3.9*1.8 |
| 6F-OFSS-40 | 40±0.05 | Double-3*1.5 | 40±0.05 | 4.7*4.7 | 2.7*1.6 |
| 12F-OFSS-40 | 40±0.05 | Double-4*2 | 40±0.05 | 5.6*5.4 | 4.3*2.0 |
