    6 Cores Ribbon Fiber Splice Sleeve Protector Shrunk 4.7x4.7mm

    Ask Lasest Price
    Brand Name : XXR
    Model Number : 6F-OFSS-40M
    Certification : SGS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 200K PCS/DAY
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

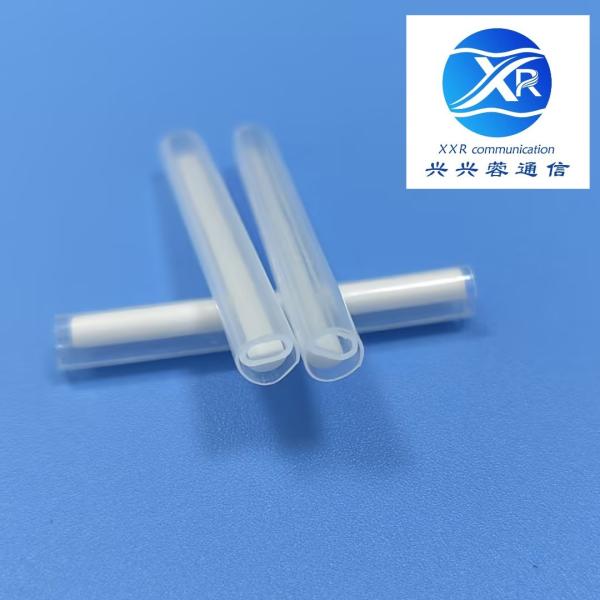

    6 Cores Ribbon Fiber Splice Sleeve Protector Shrunk 4.7x4.7mm

    40mm long Double Ceramic Rod Shrunk OD4.7*4.7mm 6 Cores Ribbon Fiber Splice Protector
    Fiber splicing protector are usually divided into single fiber splice protector and ribbon fiber splice protector. The single fiber splicing protector is used for single fiber, and the ribbon fiber splicing protector is used for ribbon fibers.
    Application: fiber splicing in optical communication field.
    Mass type sleeve materials:
    Hot melt tube
    Ceramic reinforcement member
    Heat shrinkable tube
    Used for: optical communication passive products such as FTTH optical fiber distribution box, FTTx fiber optic splice closures, ODF/patch panel, termination box, splice tray, cross-connecting cabinet and so on.
    Specification
    Part No.L. (mm)

    Steel rod

    dia.(mm)

    Outer tube

    L.(mm)

    OD after shrinking

    (mm)

    Inner tube

    I.D.(mm)

    4F-OFSS-4040±0.05Single-3*1.540±0.053.6*3.63.2*1.6
    6F-OFSS-4040±0.05Single-3*1.540±0.053.7*3.73.1*1.7
    8F-OFSS-4040±0.05Single-4*240±0.054.7*4.13.2*1.5
    12F-OFSS-4040±0.05Single-4*240±0.054.8*4.353.9*1.8
    6F-OFSS-4040±0.05Double-3*1.540±0.054.7*4.72.7*1.6
    12F-OFSS-4040±0.05Double-4*240±0.055.6*5.44.3*2.0
