Shrunk 3.7x3.7mm Ribbon Fiber Splice Sleeve 6 Cores With Single Ceramic Rod

Ask Lasest Price
Brand Name :	XXR
Model Number :	6F-OFSS-40M
Certification :	SGS
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	200K Pcs/Day
Delivery Time :	5-7 Days

Add to Cart

Product Details
Company Profile

Shrunk 3.7x3.7mm Ribbon Fiber Splice Sleeve 6 Cores With Single Ceramic Rod

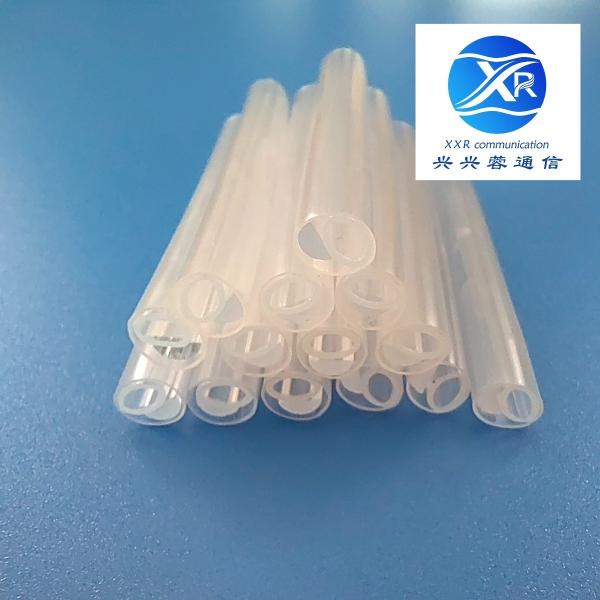

Shrunk OD3.7*3.7mm 6 Cores Ribbon Fiber Optic Protector With Single Ceramic Rod

FIBER SPLICE PROTECTOR is also called heat shrink tube, it means that the sleeve is heat shrinkable, with mini working temperation at 120 degrees.

FORMATION OF FIBER SPLICE PROTECTOR: heat shrinkable tube + fusion tube+reinforcement member. The heat shrinkable tube is outer tube round shape, fusion tube is inner tube and retangular shape, and reinforcement member is ceramic rod signle or double.

Application: fiber splicing in FTTH & FTTx project in optical communication field.

Features: parts splicing, enhanced protection, supporting positioning, reliable.

Parts: outer tube, inner tube and ceramic rod. The outer tube is heat shrink tube and the inner tube is fusion tube.The rod usully adopts ceramics and quartz. Generally, it depends on use condition.

Used for: optical communication passive products such as FTTH optical fiber distribution box, FTTx fiber optic splice closures, ODF/patch panel, termination box, splice tray, cross-connecting cabinet and so on.

Part No.	L. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube I.D.(mm)
4F-OFSS-40	40±0.05	Single-3*1.5	40±0.05	3.6*3.6	3.2*1.6
6F-OFSS-40	40±0.05	Single-3*1.5	40±0.05	3.7*3.7	3.1*1.7
8F-OFSS-40	40±0.05	Single-4*2	40±0.05	4.7*4.1	3.2*1.5
12F-OFSS-40	40±0.05	Single-4*2	40±0.05	4.8*4.35	3.9*1.8
6F-OFSS-40	40±0.05	Double-3*1.5	40±0.05	4.7*4.7	2.7*1.6
12F-OFSS-40	40±0.05	Double-4*2	40±0.05	5.6*5.4	4.3*2.0

Shrunk 3.7x3.7mm Ribbon Fiber Splice Sleeve 6 Cores With Single Ceramic Rod
