Brand Name : | XXR |
Model Number : | 4F-OFSS-40M |
Certification : | SGS |
Price : | Negotiable |
Payment Terms : | T/T, L/C |
Supply Ability : | 200K pcs/day |
Delivery Time : | 5-7 days |
40mm long 4 cores ribbon fiber optic protection sleeve
Features: parts splicing, enhanced protection, supporting positioning, reliable.

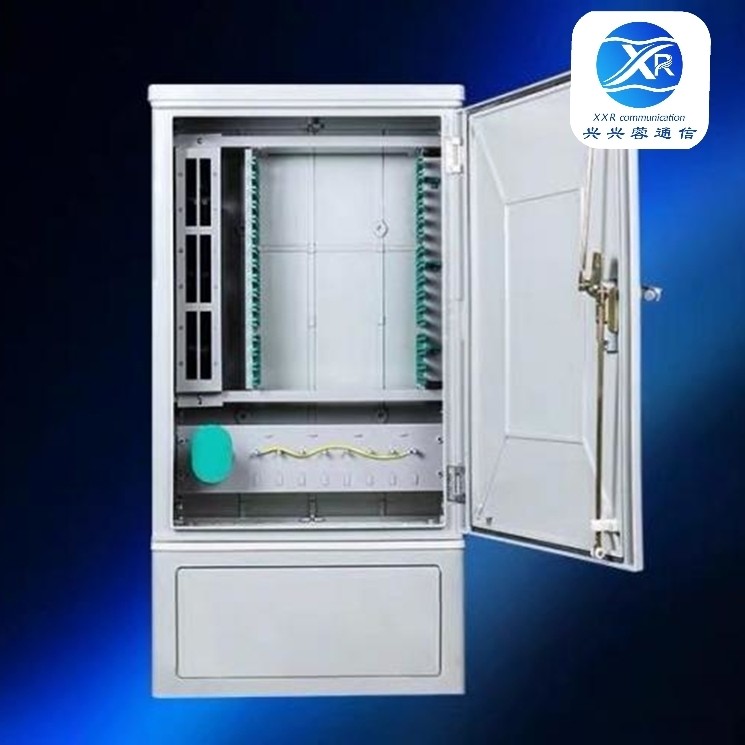

Used for: optical communication passive products such as FTTH optical fiber distribution box, FTTx fiber optic splice closures, ODF/patch panel, termination box, splice tray, cross-connecting cabinet and so on.
Part No. | L. (mm) | Steel rod dia.(mm) | Outer tube L.(mm) | OD after shrinking (mm) | Inner tube I.D.(mm) |
4F-OFSS-40 | 40±0.05 | Single-3*1.5 | 40±0.05 | 3.6*3.6 | 3.2*1.6 |
6F-OFSS-40 | 40±0.05 | Single-3*1.5 | 40±0.05 | 3.7*3.7 | 3.1*1.7 |
8F-OFSS-40 | 40±0.05 | Single-4*2 | 40±0.05 | 4.7*4.1 | 3.2*1.5 |
12F-OFSS-40 | 40±0.05 | Single-4*2 | 40±0.05 | 4.8*4.35 | 3.9*1.8 |
6F-OFSS-40 | 40±0.05 | Double-3*1.5 | 40±0.05 | 4.7*4.7 | 2.7*1.6 |
12F-OFSS-40 | 40±0.05 | Double-4*2 | 40±0.05 | 5.6*5.4 | 4.3*2.0 |
![]() |
