Brand Name : | XXR |
Model Number : | OFSS-40T |
Certification : | SGS |
Payment Terms : | L/C, D/A, D/P |
Supply Ability : | 100000 |
Delivery Time : | 3-7 work days |

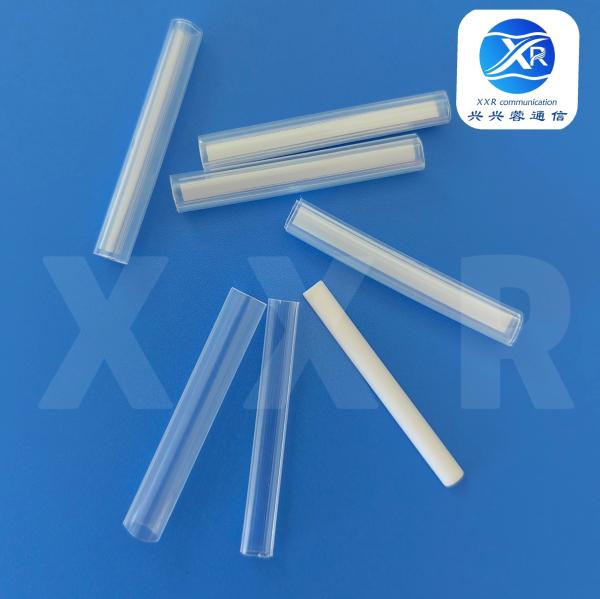

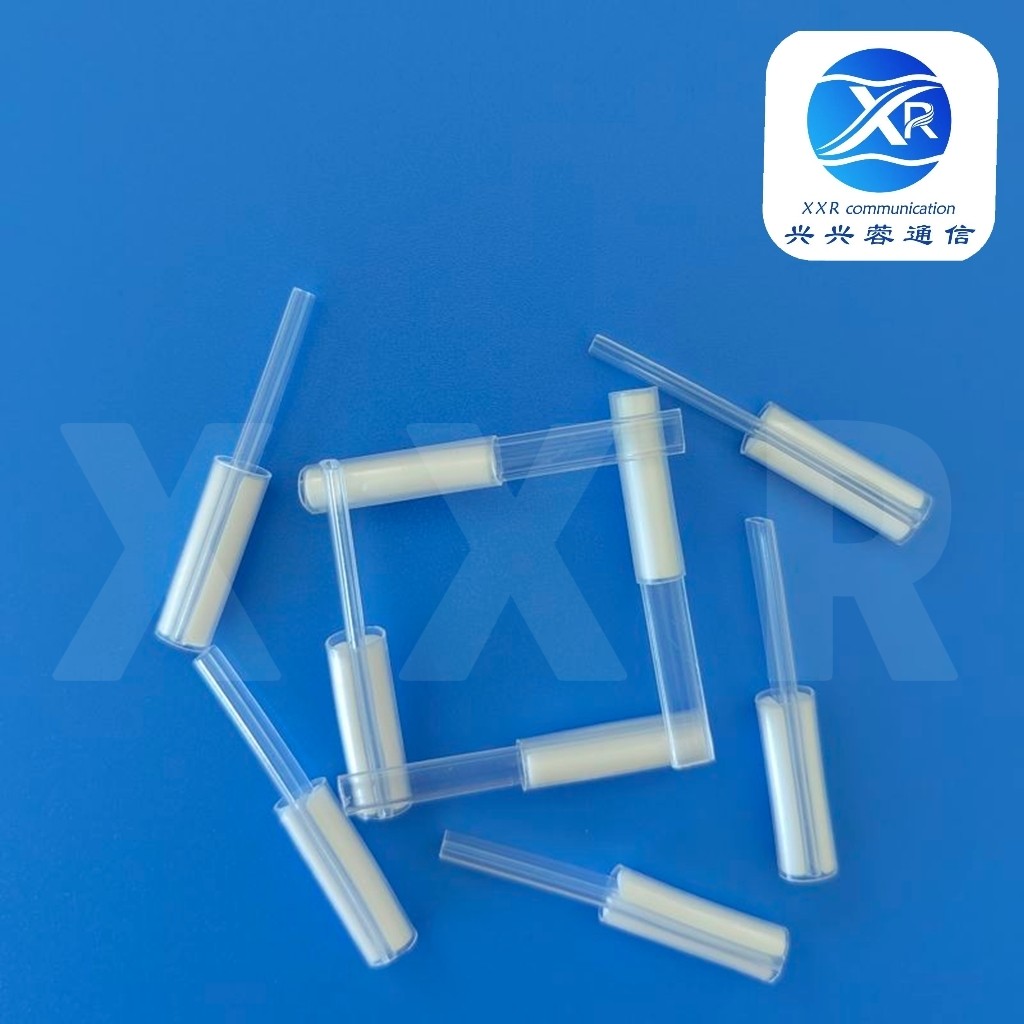

Strip heat shrinkable tube single ceramic/double ceramic 4-12 cores
Product Description
1, Ribbon Fiber Optic Sleeve is designed to protect ribbon splices
of multi-fibers.
2, The ceramic strength member is used to supporting the splices
fiber counts in a ribbon sleeves rang from 2 to 12 fibers.
3, The length is usually 40mm. If stronger protection is required,
you can choose the ribbon sleeves with double ceramic rods.
4, We also manufacture sleeves with quartz rod instead of ceramic
rod which is much clear to allow viewing the color of fiber after
splicing.
Product Features
specifications
Name | Fiber/Rod | Ceramic Rod | Outer Tube | lnner Tube | After Shrink |
Spec.(mm) | Lenfth(mm) | I.D(mm) | O.D(mm) | ||
Ribbon Fiber Optic Splice Sleeve | 12F-1 | 40*4*2 | 40 | 3.9*1.8 | 4.7*4.9 |
8F-1 | 40*4*2 | 40 | 3.2*1.5 | 4.0*4.6 | |
6F-1 | 40*3*1.5 | 40 | 3.1*1.7 | 4.0*4.0 | |
4F-1 | 40*3*1.5 | 40 | 3.2*1.6 | 3.6*3.8 | |
12F-2 | 40*4*2 | 40 | 4.3*2.0 | 5.3*5.7 | |
6F-2 | 40*3*1.5 | 40 | 2.7*1.6 | 4.3*4.5 |
![]() |
