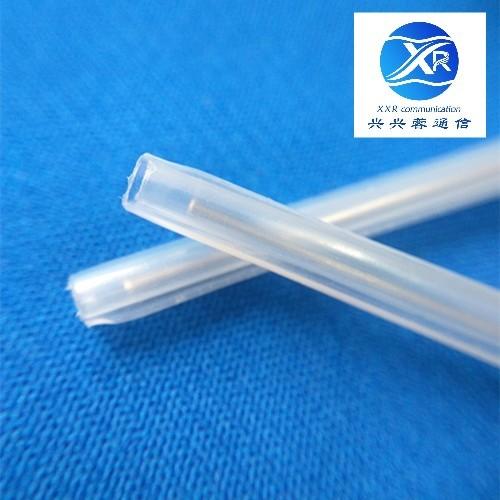

    ODF 60mm Fiber Optic Splice Protector 1.2mm Steel Rod

    Ask Lasest Price
    Brand Name : XXR
    Model Number : OFSS-60T
    Certification : SGS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 200K pcs/day
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    ODF 60mm Fiber Optic Splice Protector 1.2mm Steel Rod

    1.2mm Diameter Steel Rod 60mm Long Optical Fiber Splicing Protector


    Description


    Name: Optical Fiber Splicing Protector

    Model: FOSS-60T

    Material: Polyolefin, stainless steel

    Length: 60mm

    OD after shrinking: 2.7mm

    Steel rod diam.: 1.2mm


    Technical data:


    XXR Communication Technology is specialized in manufacturing sorts of fiber splice sleeves for global fiber closure manufacturers.The company passed SGS and the products complied with RoHS and Reach.


    The company has three advanced production lines, including steel rod production line, plastic tube production line and automatic-assembly production line.the capability of producing sleeves exceeds 200,000 pieces a day.


    The splice sleeve's quality is strictly controled, all parts have to be seriously checked for outgoing. Since 2013, the company is famous for its high quality and gained much reputations.Numerious orders from all over the world come to XXR, who is aways insisting on high quality as its orientation of surrvival.


    Use: fiber splicing in FTTH and FTTx project

    Suitable for: Optical Distribution Frame


    Specifications:
    Part No.Spec. (mm)

    Steel rod

    dia.(mm)

    Outer tube

    L.(mm)

    OD after shrinking

    (mm)

    Inner tube

    L.(mm)

    ID

    (mm)

    OFSS-40T1.5 * 401.5403.040≥1.2
    OFSS-45T1.5 * 451.5453.045≥1.2
    OFSS-60T1.5 * 601.5603.060≥1.2
    OFSS-40T1.2 * 401.2402.740≥1.2
    OFSS-45T1.2 * 451.2452.745≥1.2
    OFSS-60T1.2 * 601.2602.760≥1.2
    OFSS-40T1.0 * 401.0402.540≥1.2
    OFSS-45T1.0 * 451.0452.545≥1.2
    OFSS-60T1.0 * 601.0602.560≥1.2
