    Colorful Fiber Optic Splice Sleeve

    Ask Lasest Price
    Brand Name : XXR
    Model Number : OFSS-60T
    Certification : SGS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 200K pcs/day
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    Colorful Fiber Optic Splice Sleeve

    FTTH & FTTX Colorful Single Fiber Optic Splice Sleeve


    Fiber optic splice sleeve is also called fiber heat shrink tube, which are made of PE or EVA material, with preshunk at both ends.


    The outer tube is heat shrinkable tube made of PE and the innter tube is hot melt tube made of EVA .


    The sleeve is designed according to fiber splice tray, its length are 40mm, 45mm and 60mm, also we are able to produce other specifications as per customer's special requirement.

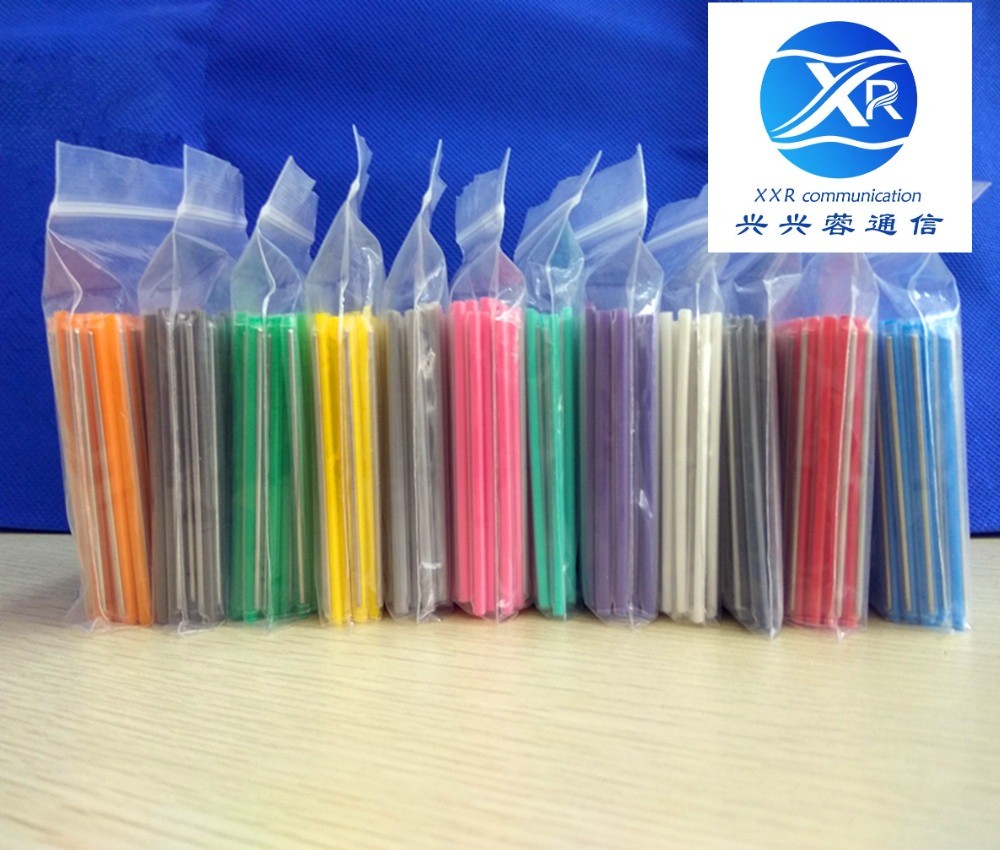

    The colorful fiber optic splice sleeve usually indicates inner tube, and the outer tube is clear as usual. To choose this kind of sleeve is to identify fibers.


    Application: optical communication field.


    Features: parts splicing, enhanced protection, supporting positioning, reliable.


    Used for: ODF/patch panel, optical fiber distribution box, termination box, splice tray, splice closures, cross-connecting cabinet etc.



    Specifications:

    Part No.Spec. (mm)

    Seel rod

    dia.(mm)

    Outer tube

    L.(mm)

    OD after shrinking

    (mm)

    Inner tube

    L.(mm)

    ID

    (mm)

    OFSS-60T1.0*601.0602.5601.8
    OFSS-54T1.0*541.0542.5541.8
    OFSS-45T1.0*451.0452.5451.8
    OFSS-40T1.0*401.0402.540

    1.8

    OFSS-60T1.0*601.2602.7601.7
    OFSS-54T1.0*541.2542.7541.7
    OFSS-45T1.0*451.2452.7451.7
    OFSS-40T1.0*401.2402.7401.7
