Brand Name : | XXR |
Model Number : | OFSS-0.9T |
Certification : | SGS |
Payment Terms : | L/C, D/A, D/P |
Supply Ability : | 100000 |
Delivery Time : | 3-7 work days |

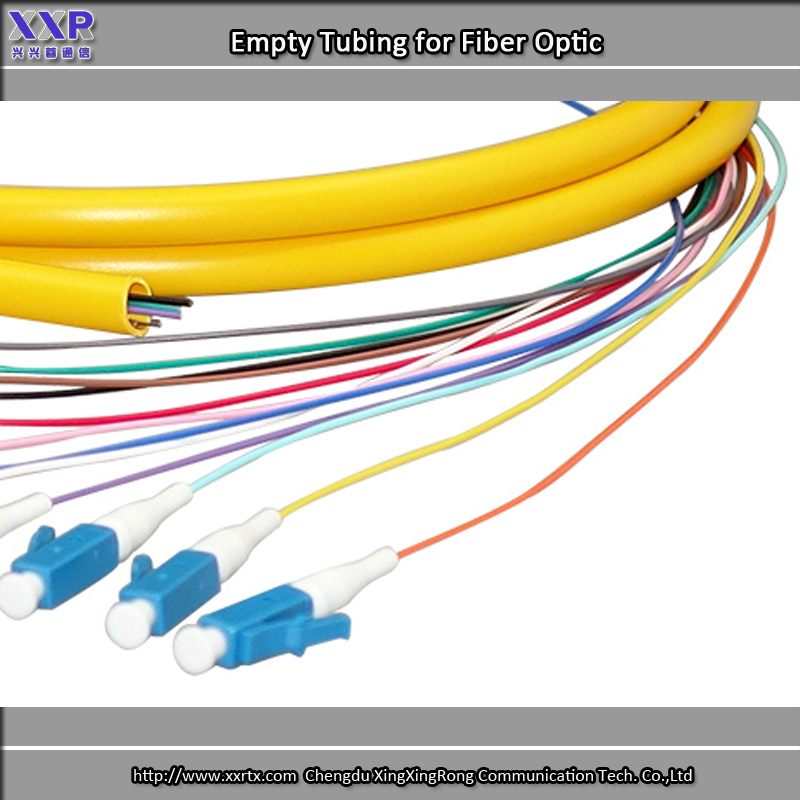

Optical fiber loose tube Protection tube Empty tube 0.9 x 0.5
Product details
1. Optical fiber protection tubes are also called empty tubes or
fiber-free tubes, loose tubes, and imported Haitrell, which have
undergone advanced processing.
2. The fiber protection tube has excellent heat resistance, flame
retardant and insulation properties, providing the best protection
for 250um fibers.
Product features
1. Reach the highest flame retardant grade.
2. It has the characteristics of high strength, high elasticity,
oil resistance, acid and alkali resistance, high temperature
resistance, radiation resistance, excellent dynamic mechanical
properties, no acid gas release, no corrosion of equipment, and
personal health and safety.
3. The perfect performance can be maintained at 85℃ for a long
time.
Product parameters
Name | Specifications | Color | Tensile Strength | Elongation at Break | Tear Strength | Heat-Shrinkage Rate | O.D (mm) | I.D (mm) | Work Temperature |
Loose tube | Hytrel 0.9*0.5 mm | Natural/multi-color | 13.6 Mpa | 500.00% | 53.2 KN/m | ≤0.5% | 0.9 | 0.50 | -4 |
Product Application
1. Used to protect various single-coated optical fibers or optical
fiber ribbons.
2. Used as a protective tube for optical transmission equipment and
exposed optical fibers at the end of devices.
3. Protect bare optical fibers from mechanical damage during fiber
handling and any subsequent conditions.
4. Effectively prevent water vapor, fuel, acid, alkali and solvents
from corroding the optical fiber to ensure the transmission
performance of the optical fiber.
![]() |
