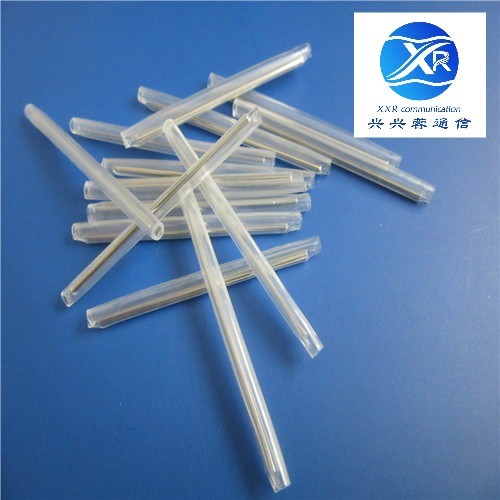

60MM Clear Fiber Optic Cable Protector Sleeve

Also called “FTTH Drop Splice Closure”, “FTTH Drop Repair Splice Closure ”, “FTTH Drop Repair joint kits”

This Fiber Drop Splice Closure is used in FTTH Connection. We use this Fiber Drop Repair Splice Closure to make heat Shrinkable Splice with 2pcs Drop Cable (Or Drop Cable SC Connector Terminated one side). Designed for either Flat Drop Cable or Round Drop Cable. this Fiber Drop Repair Splice Closure is installed indoor or Outdoor, provide good connection and protection in FTTH Constructions.

Optical cable protection is made of PE/EVA , with stainless steel rod diameter 1.0mm, Shrunk OD 3.5mm,3.6mm and 3.8mm. It's shape and design almost same as single fiber splice sleeve, just the outer diameter after shrinking and inner diameter are different.

The cable protection sleeve is usually installed in the protection box for protecting cable joint .

Application: optical communication field.

Features: parts splicing, enhanced protection, supporting positioning, reliable.

Used for: FTTH optical cable joint protection box.

Seel rod

dia.(mm)

Outer tube

L.(mm)

OD after shrinking

(mm)

Inner tube

L.(mm)

ID

(mm)

3.5

XXR has a set of advanced equipment for producing fiber optic protection sleeves,

all parts as steel rod,outer tube and inter tube are manufactured by ourselves,

which enable us to controll the quality competely,and therefore provide the

customers with high quality products.

Always bear in mind that quality is the cornerstaone of XXR's survival and the

reason why customers choose XXR.

XXR is committed to providing customers with high quality products,service and

solutions, and creating value for every customer.

1. High qulaity: the products are made with premium raw material with good

performance and in accordance with RoHS, REACH.

2. Fast delivery: XXR has strong production capability and delivers goods in

a short time once the order is confirmed.

3. Competitive price: the fiber optic splice protection sleeve consists of outer

tube, inner tube and steel rod, unlike other factories, all of them are produced

by ourselves, which can help us save some cost, therefore, we can offer a

better price to the customers.

4. Perfect technical support: XXR has a team of well-trained technicians who

can provide our customers good technical support.
