45mm Fiber Optic Splice Sleeve , PE Protection Sleeve Fiber Optic

45*1.35*2.6 Fiber Splice PE Fiber Optic Heat Shrink Sleeve / PE Fiber Optic Heat Shrink Sleeve

This specification shows technical, functional and layout features of “Heat Shrink Fiber Optic Fusion Splice

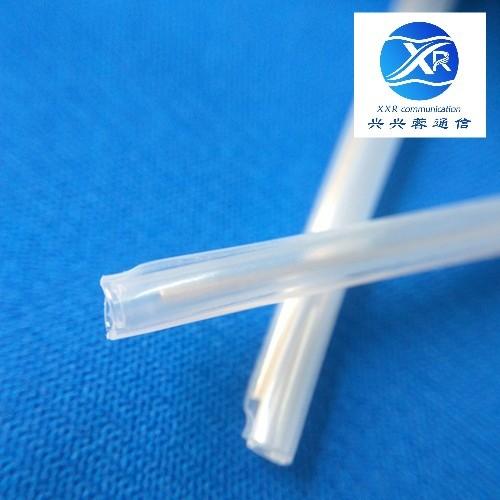

The sleeve is made by hot-melt adhesive – Ethylene Vinyl Acetate (EVA) or Polyethylene (PE) – internally and by irradiation cross-linked polyolefin heat shrinkable tubing externally. There is also a reinforcing pin made by deburred and polished stainless steel. Please refer to the picture below.

Specification

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2
OFSS-40T	1.0 * 40	1.0	40	2.5	40	≥1.2
OFSS-45T	1.0 * 45	1.0	45	2.5	45	≥1.2
OFSS-60T	1.0 * 60	1.0	60	2.5	60	≥1.2
