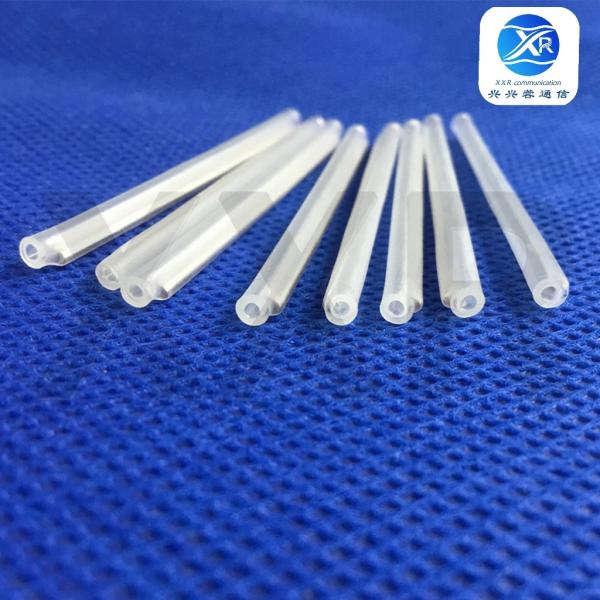

40MM OD2.7MM Fiber Optic Equipment Fiber Distribution Box
Accessories Clear PE Fiber Sleeve
Fiber Sleeve, 40mm long, OD after recovery 2.7mm, clear PE material, it is with
minimum recovery celsius temperature 120 degrees and operating
temperature range from -45 degree to 100 degrees, it consists of
heat shrink tube ( outer tube ),
fusion tube (inner tube) and 304 gradestainless steel strength
member.
The Fiber sleeve is specially designed for single fiber splicing and protection,
and installed in the optical closures such as fiber optic splice
closure, street cabinet, cross connection cabinet, termination box,
splice tray etc.
High quality fiber sleeve, designed for single fiber 250um or 900um
Features
. Protect the joint point of optical fiber
. Keep the transmisstion performance of optical fiber
. Keep the splice pioint with good resistance of humidity and
teperature
. Easy to install and avoid damage to the optical fiber
. Premium 304 grade stainless steel used to make strength member
. Strength member with ends polished & chamfered
. The fiber optic protector sleeve with ends fully sealed, keeping
strength member fixed.
Pay attention to details
. Superior Quality: Sleeves shrink tightly toexclude air and hold
the rod firmly preventing abrasion of delicate glass fibers;
. Attractive Outlook: SUS304 steel rod plays a good fix pisition in
the middle of sleeve. The cutting edges are neat and beautiful.
. Ideal Transparency: Transparent casing for a clear vie of the
fiber connection status
Product comparison
. Top quality sleeve with fully sealed ends
. Normal type sleeve with half-sealed ends
. The difference between the products is whether there is a gap
between the internal and external tubes
40MM Fiber Distribution Box Sleeve
Product Specification
| Outer diameter after recovery: OD 2.7±0.1mm | Inner diameter before recovery: ID 1.7±0.1mm |
| Steel rod diameter: OD 1.2±0.1mm | Minimum installation temperature: 100℃ |
| Max installation time: 60 seconds | Standard color: Clear |
| RoHS compliant | Packing: 100 pcs/bag (Other for special order) |
Operating temperature
-45°C to +100°C; Minimum fully recovery temperature:120°C
Application
The fiber sleeve is widely used in the optical communication field,
for the euipment such as fiber optic splice closures, fiber
distribution box, splice tray,
termination box, cross connection cabinet etc.
Operation Steps
Step 1: Strip fiber jacket and bare fiber
Step 2: Fiber through heat shrinkable tube
Step 3: Cut fiber with a light cutter
Step 4: Dissolved optical fiber
Step 5: Heat processing
Step 6: Finished
Applied to ODF
Applied to Fiber Distribution Box (FDB)
Applied to Fiber Optic Splice Closure
Different packaging
XXR Advantages
. Production capability: 2000,000 pieces per day
. Advanced fiber sleeve auto-assembly production line
. Extrusion production line for inner tube
. Strength member production lines
. Strength member processing equipment ( polishing & chamfering)
. Competitive price
. Short production and fast delivery
. DHL, UPS, TNT, FedEx etc. express for door to door, fast and safe
. Good after-sale service
Welcome to consult.
